Repair of Gemini GX 350 Powered speaker









Fault - Dead, no output

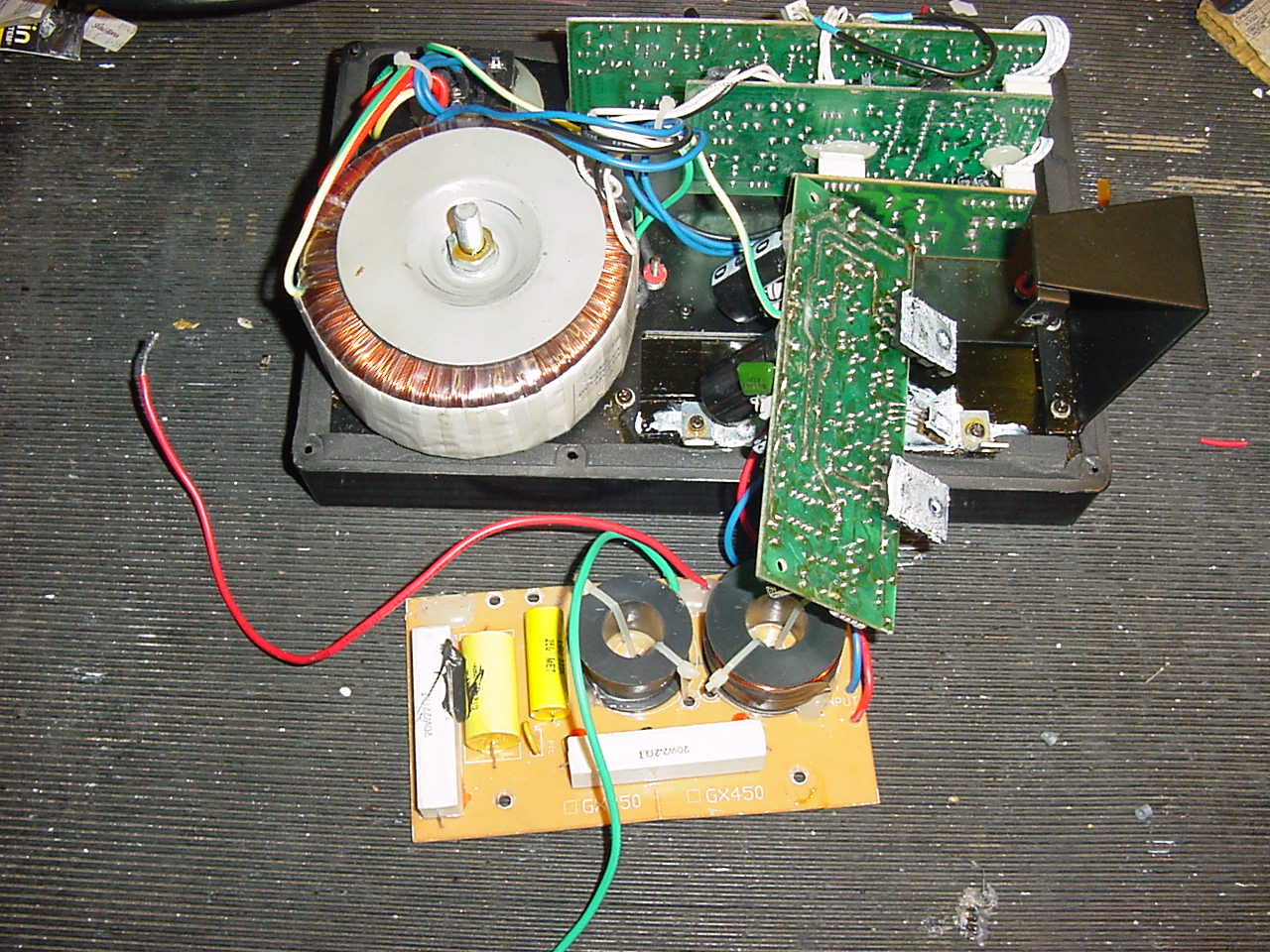

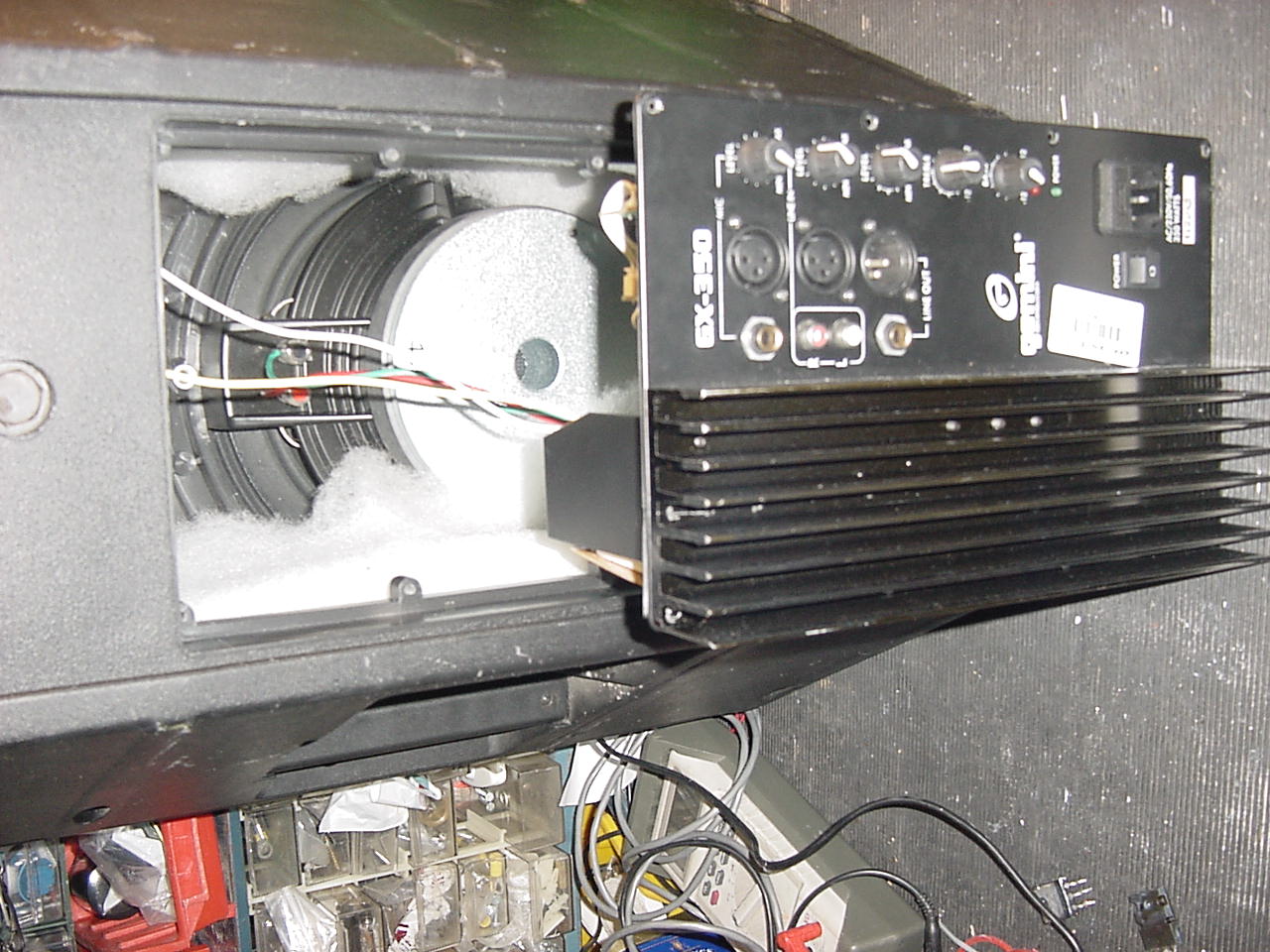

Removed the active amplifier assembly from the cabinet,

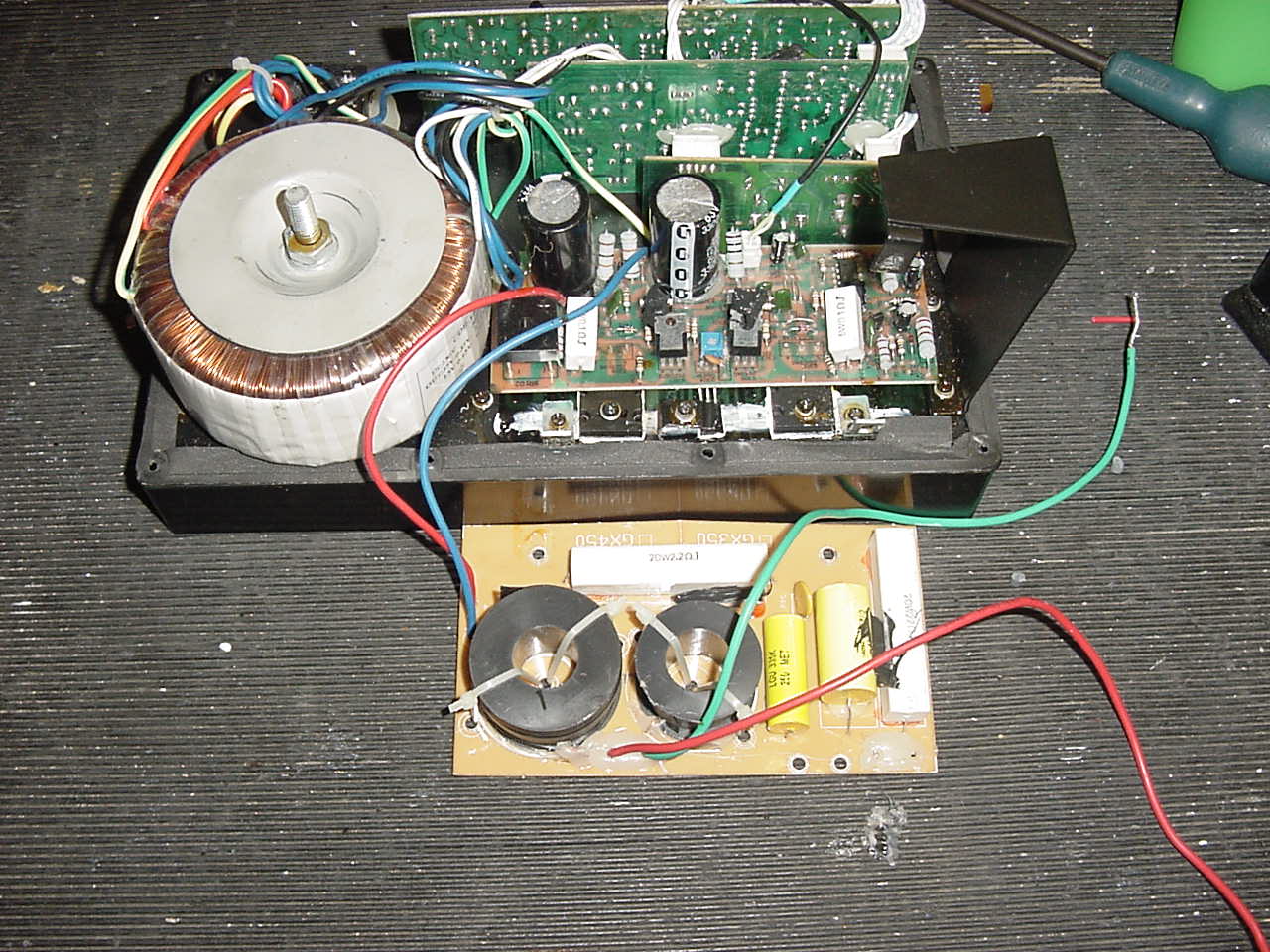

See the removed crossover assembly showing the 2 output devices under the amplifier main PCB, 1st thing to check is the two output transistors

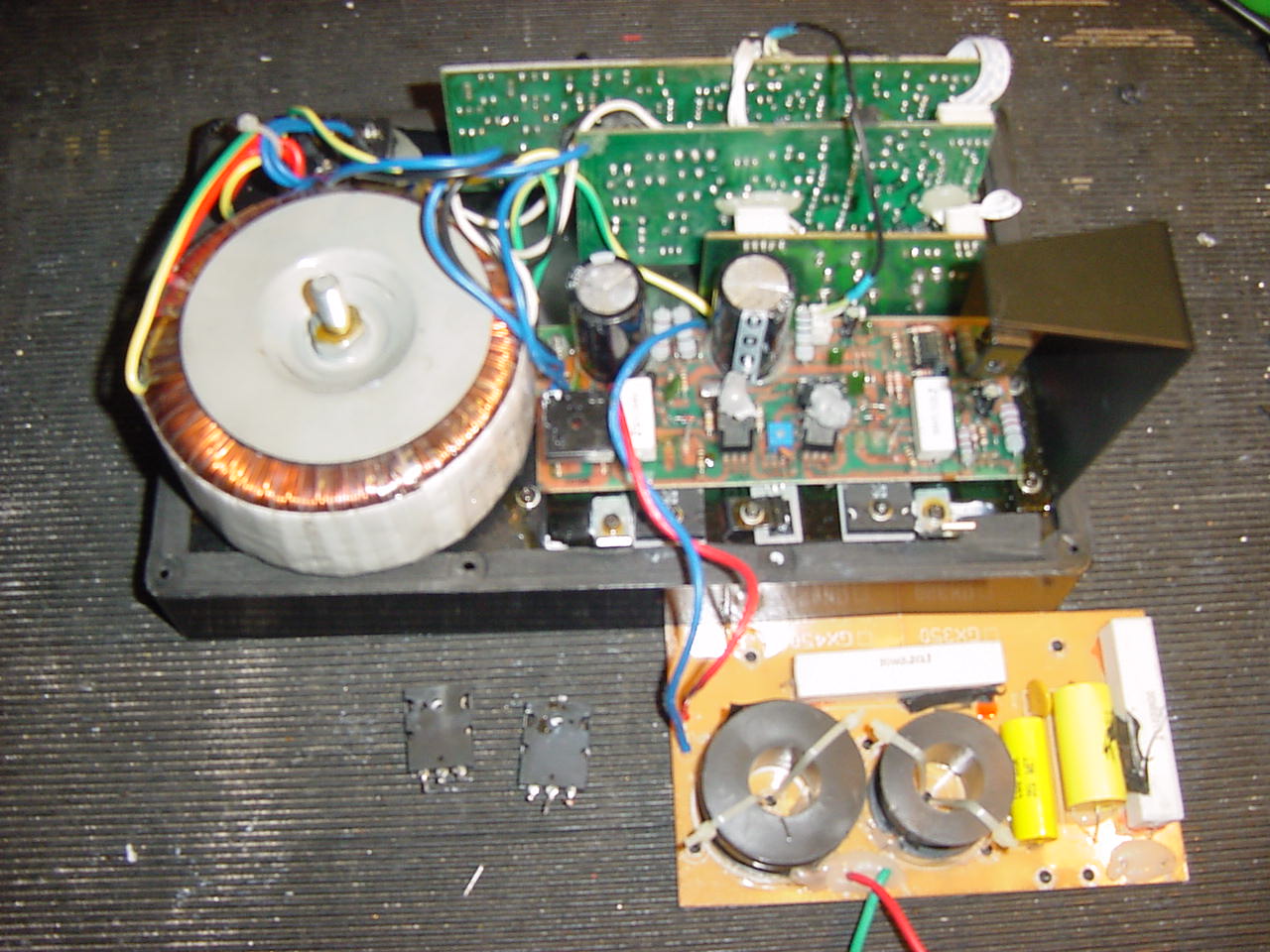

Removed the PCB with the output devices

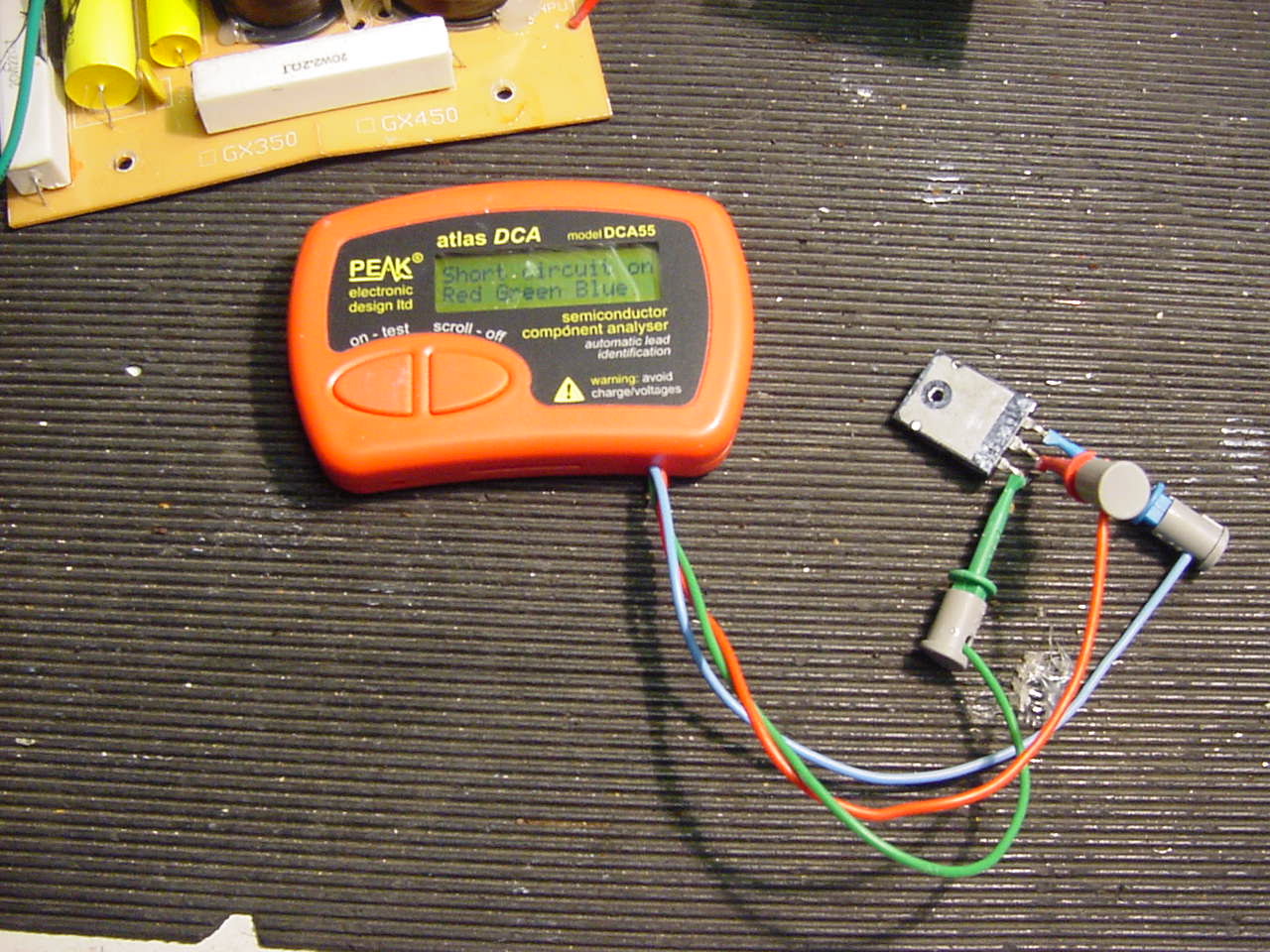

Tested the output devices  2SK1953 2SC5200  found a short circuit on one of the devices, which was expected

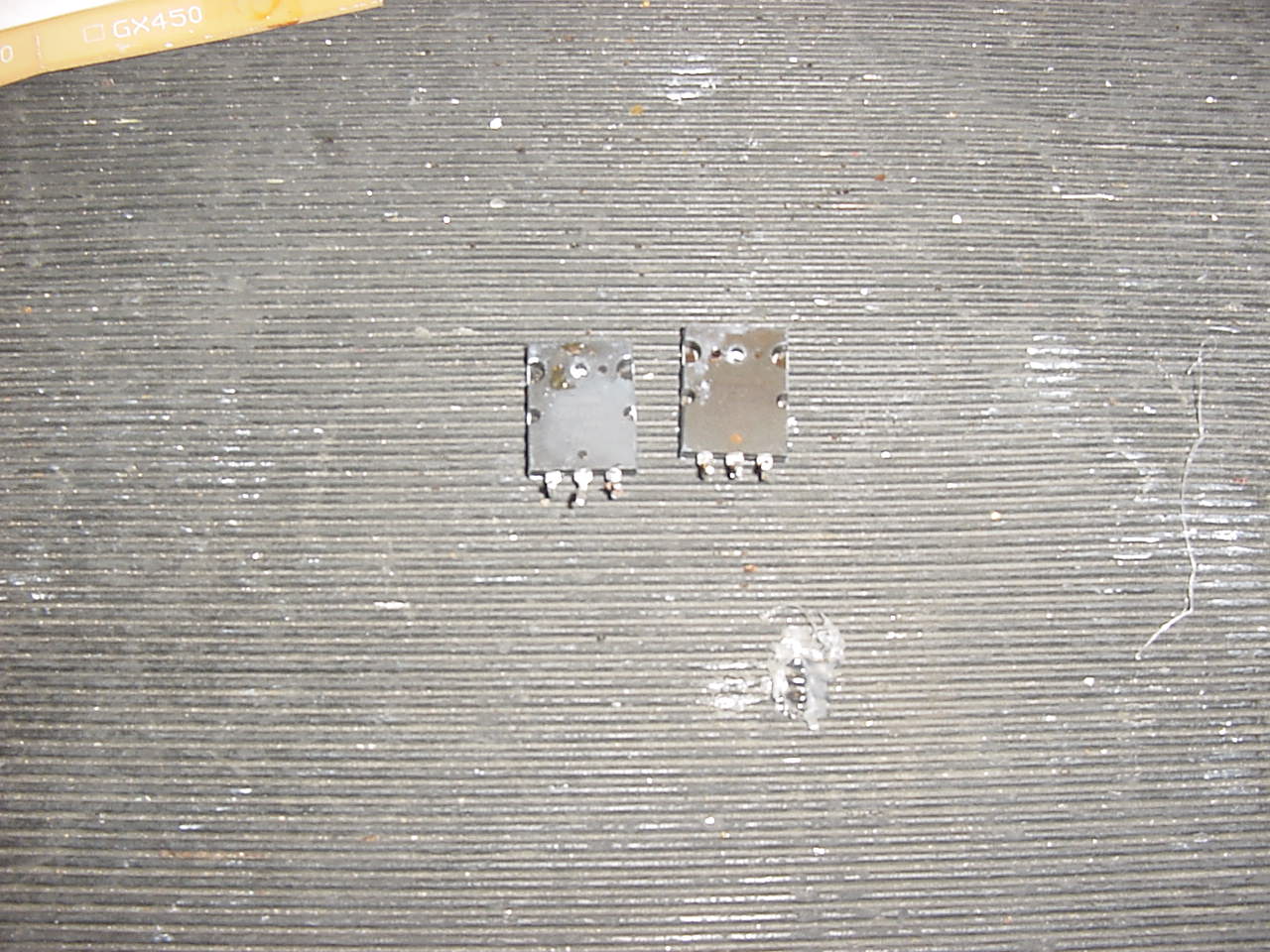

Removed both output transistors



Fitted matched pair of 2SK1953 2SC5200 transistors, reassembled the amplifier PCB and tested on the work bench - adjusted the bias, all looked ok full output achieved

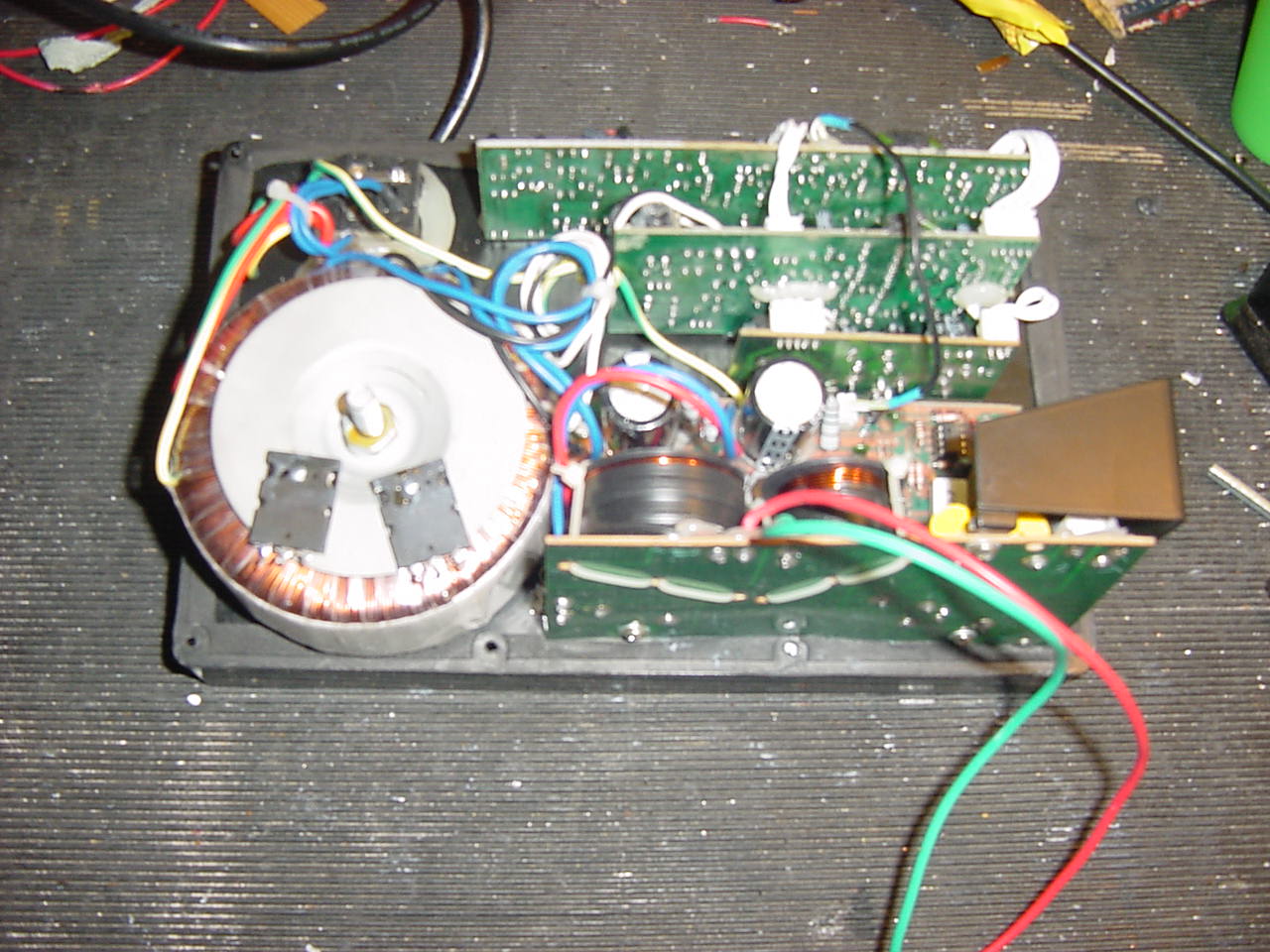

Reassembled the crossover unit ready for refitting the amplifier assembly

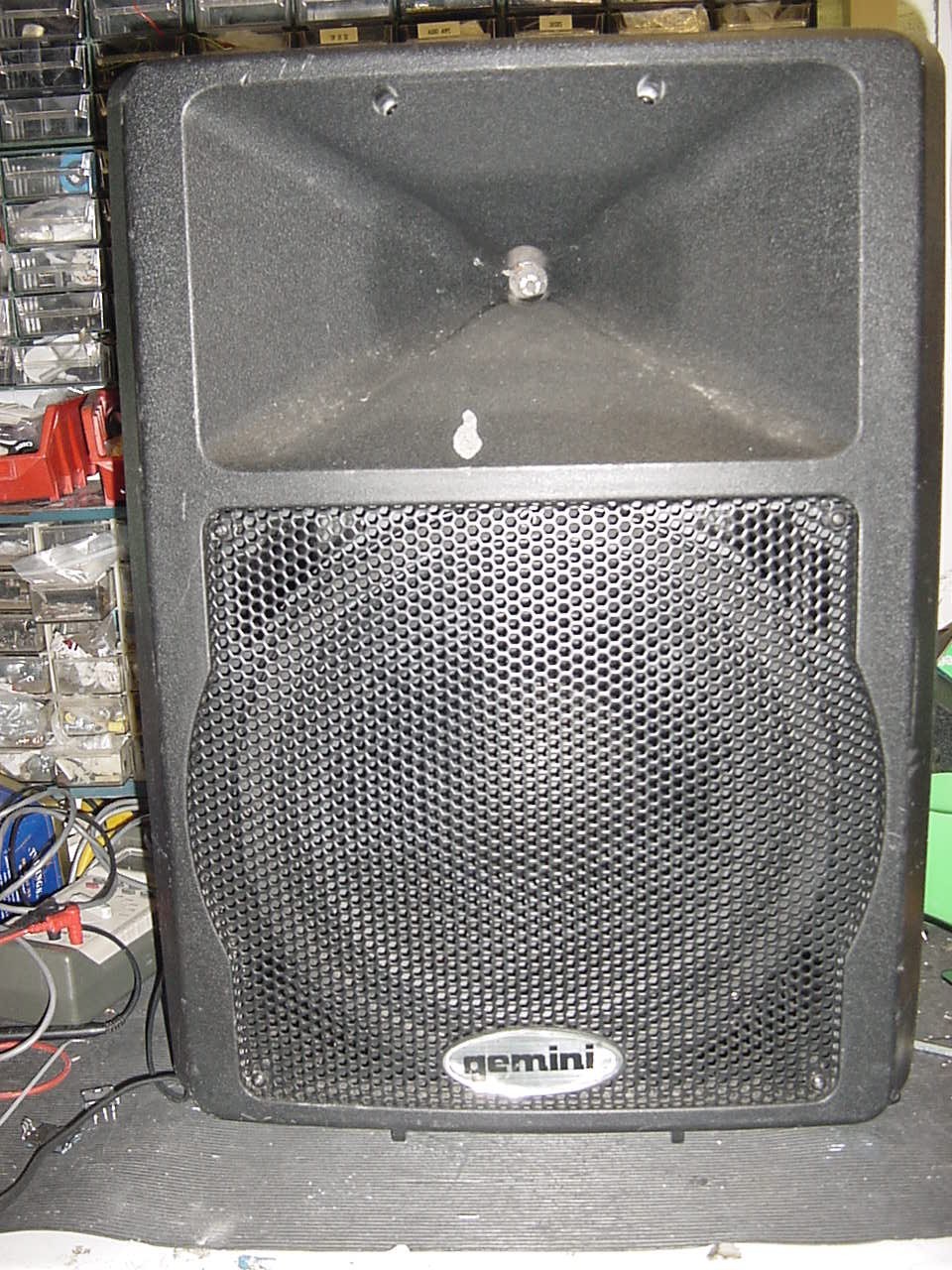

Refitted assembly back into the cabinet re connecting cables



Tested unit for 4 hours all ok
