Repair of  ALTO PS4HA  Bi Amplified - Powered Speaker





Fault: The speaker had a distorted sound.

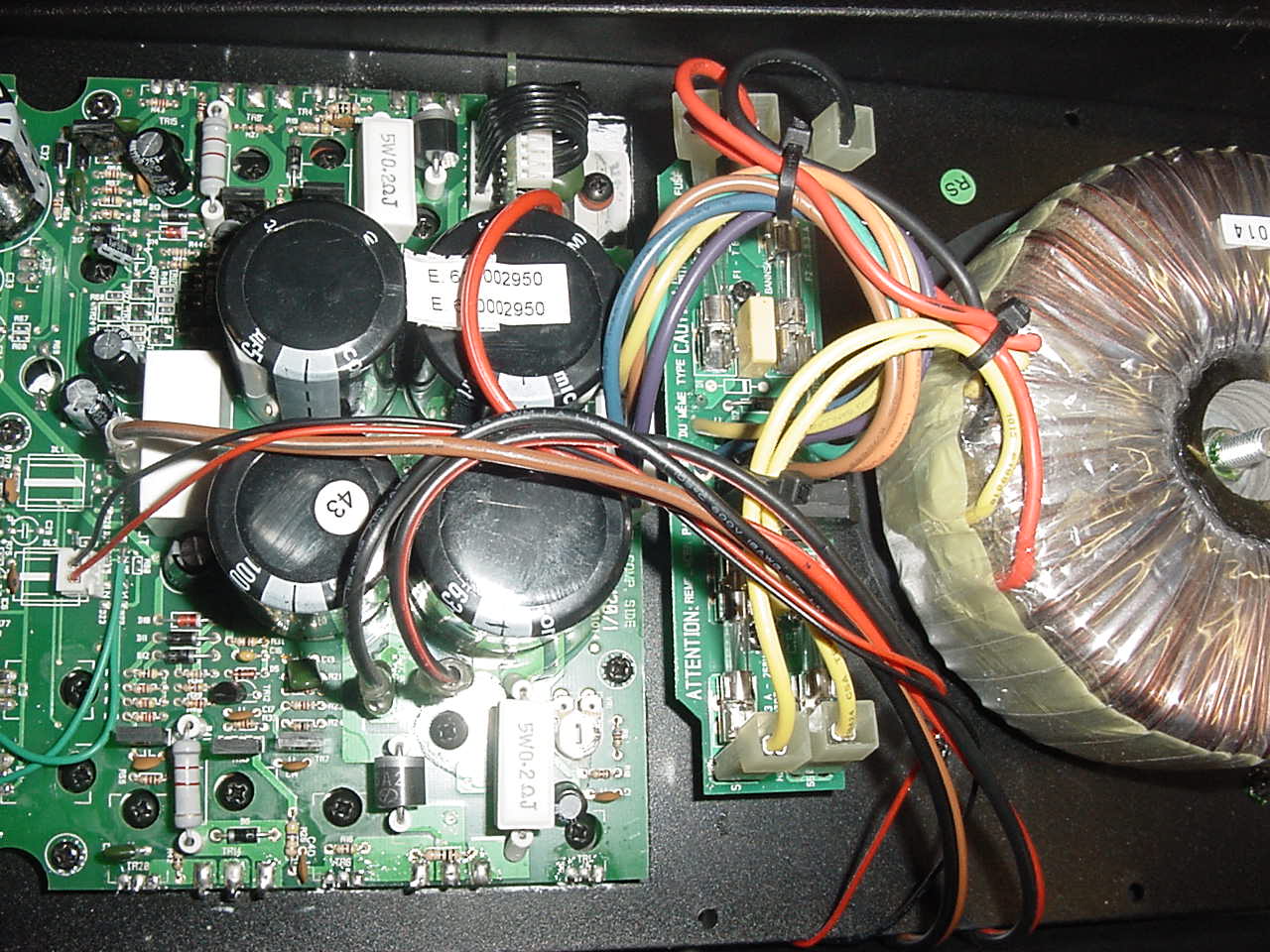

This speaker has 2 amplifiers - a 350w class H for the 12" driver and a 100w class B for the tweeter, On inspection found the tweeter amplifier was giving a distorted waveform on the negative going part of the sine wave test signal, found the tweeter amplifier to be a TDA7294 100w integrated amplifier chip, which can be just seen middle top of photos bellow, suspected this to be the problem as a clean signal was going into the amplifier.







The amplifier is mounted on a dedicated PCB board fed by the back ribbon cable







De-soldered the Amplifier chip







Installed a new TDA7294 Amplifier chip and refitted to the heatsink - see old chip lying next to it.







Tested unit - now showing a good clean waveform all the way up to 20Khz



 Re-assembled the PCBs and covers



Tested speaker for 4 hours all ok.

Comments

This unit is quite neat and easy to work on, the only thing I don't like is the input board that has a DSP, which is a bit over the top and would be quite expensive to replace.
